BILT HARD 250A MIG Welder, Gas MIG/Flux Core MIG/Lift TIG/Stick 4-in-1 Welding Machine, 110V/220V Multi-Process Welder w/LED Display, IGBT Inverter

Name: BILT HARD 250A MIG Welder, Gas MIG/Flux Core MIG/Lift TIG/Stick 4-in-1 Welding Machine, 110V/220V Multi-Process Welder w/LED Display, IGBT Inverter
Brand: bilthard (SC)
SKU: WLD-1603
Price: 349.99 USD
Availability: InStock

$349.99

Shipping calculated at checkout.

Description

Powerful Dual-Voltage MIG Welding Machine – Versatile and Reliable

Key Features:

Versatile Welding Performance

Operates on 110V/220V dual voltage, making it compatible with various power supplies.
Capable of welding steel (carbon steel, alloy steel, stainless steel), aluminum, and more.
Handles metal thicknesses of up to 3/8 inch, perfect for a wide range of welding tasks.

High-Performance Output

Provides a wide current range (30-195A at 110V and 25-250A at 220V) for adaptability.
Powered by IGBT inverter technology to deliver stable arcs and improved efficiency.
Supports a 60% duty cycle at 250A, ensuring reliable performance for prolonged tasks.

User-Friendly Operation

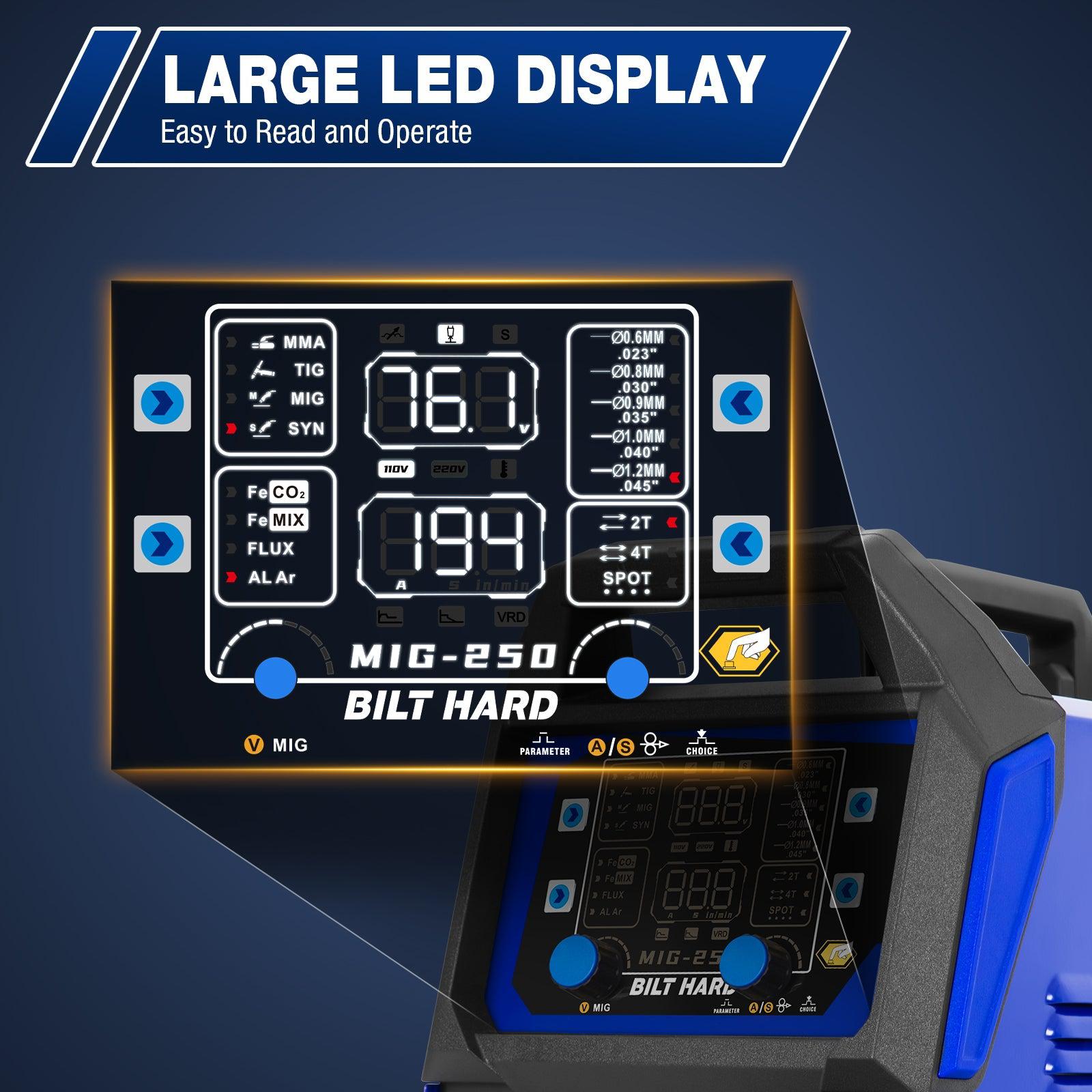

Features a clear LED display showing real-time welding parameters such as voltage, current, and wire feeding speed.
Intuitive control panel with easily adjustable buttons and knobs to switch modes, select gas options, and set wire diameters.
Reduces setup time, improving overall efficiency.

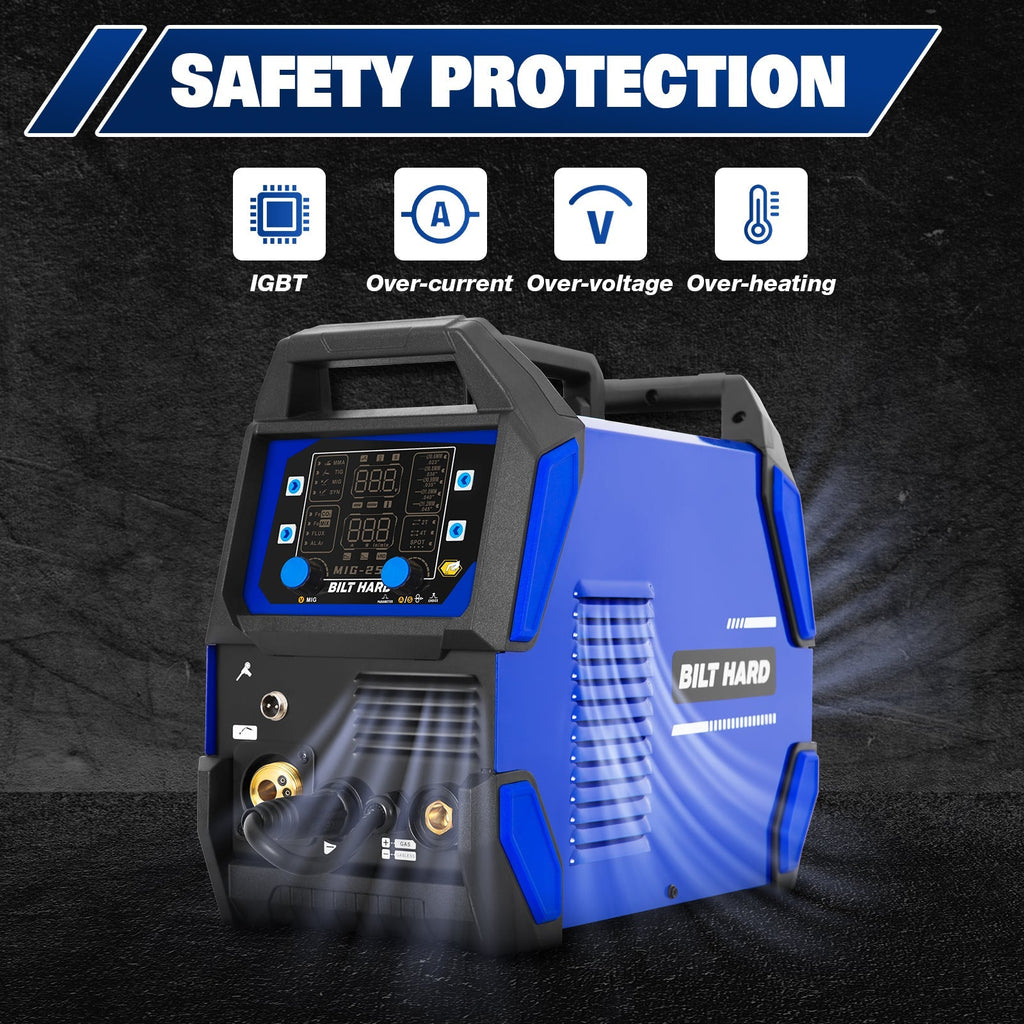

Safety Features

Equipped with overheat and overcurrent protection to prevent damage during operation.
Automatic breaker trips when limits are exceeded, while the cooling fan continues to maintain safe operation.

Comprehensive Accessories Included

10ft graphene liner and 8.2ft shielding gas hose.
10ft electrode holder, work clamp, and MIG welding gun.
Additional tools: wire feed rollers, conductive tips, rubber ring, power cord adapter, brush & hammer, and a user manual for easy setup and usage.

This MIG welding machine combines power, precision, and safety, making it a reliable choice for professional and DIY welding projects.

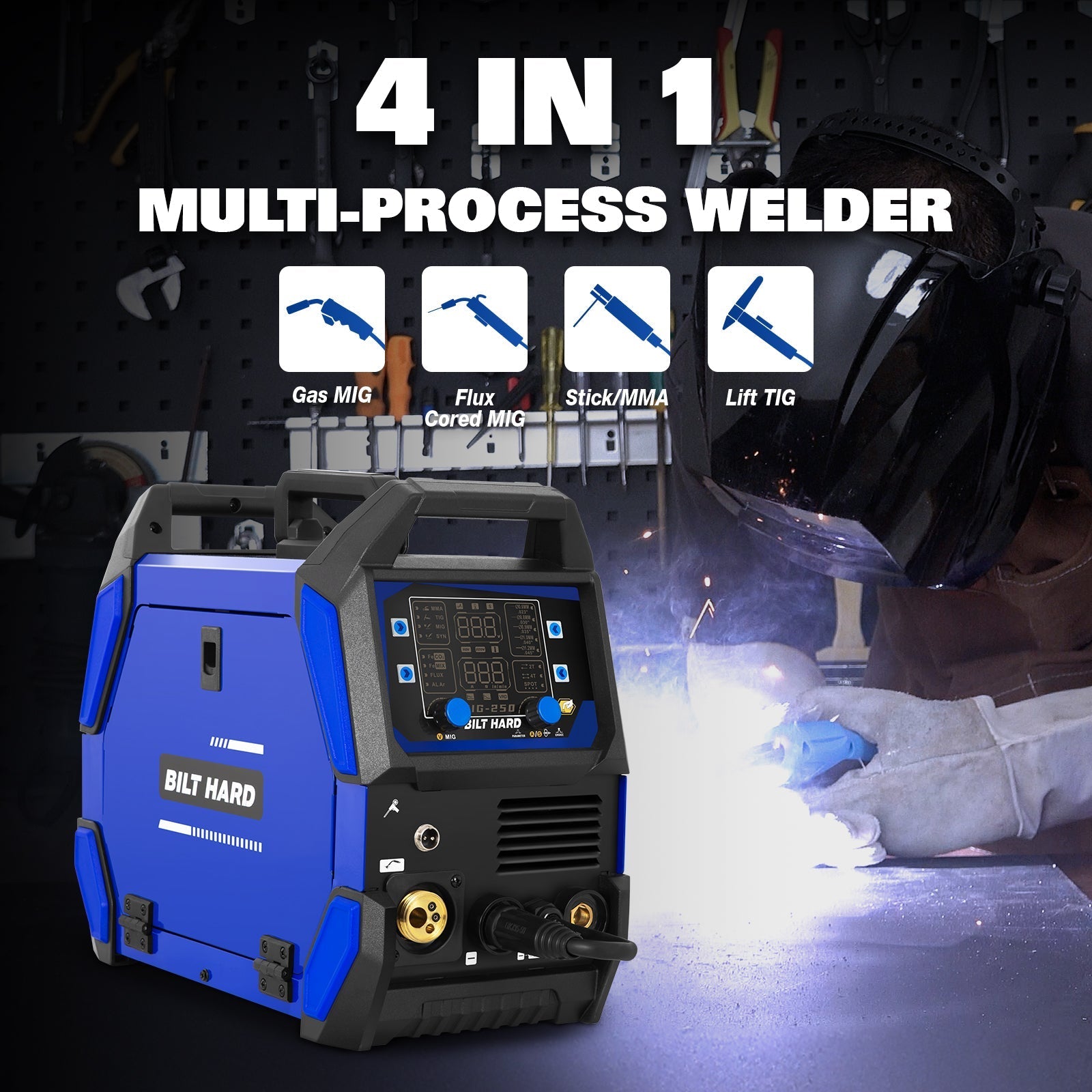

The BILT HARD MIG welder is a highly versatile welding machine designed for both professional welders and serious hobbyists. It combines multiple welding processes into a single, compact, space-saving, and lightweight unit. With its advanced IGBT inverter technology, it can produce a stable arc, allowing for precise and effortless welding of various steel thicknesses, with a maximum welding output of 250 amps, capable of handling up to 3/8-inch thick steel.

Input Voltage: 110V or 220V (with dual-voltage self-adaptive function).

Current Parameters:

MIG Mode: 110V - Input current (I1max = 69.6A, I1eff = 50.4A), output current range (30 - 195A); 220V - Input current (I1max = 47.8A, I1eff = 34.1A), output current range (30 - 250A).
Stick Mode: 110V - Output current range (25 - 176A); 220V - Output current range (25 - 225A).
Lift TIG Mode: 110V - Output current range (15 - 195A); 220V - Output current range (15 - 250A).

Welding Wire Specifications (MIG Mode):

110V - Compatible with.023"(0.6mm),.030"(0.8mm),.035"(0.9mm) solid/flux welding wire and.035"(0.9mm),.045"(1.2mm) aluminum welding wire.
220V - Compatible with.035"(0.9mm),.040"(1.0mm),.045"(1.2mm) solid/flux welding wire and.035"(0.9mm),.045"(1.2mm) aluminum welding wire.

Wire Feeding Speed (MIG Mode):

110V - Manual MIG (66 - 569 inches/minute), Synergic MIG (66 - 569 inches/minute).
220V - Manual MIG (66 - 858 inches/minute), Synergic MIG (66 - 858 inches/minute).

Output Voltage:

MIG Mode: 110V - Manual MIG (15.5 - 23.7V), Synergic MIG (15.5 - 23.7V); 220V - Manual MIG (15.5 - 26.5V), Synergic MIG (15.5 - 26.5V). The output voltage in Synergic MIG can be micro-adjusted within - 3V to +3V.
Stick Mode: Displays the welding voltage value.
Lift TIG Mode: Displays the welding voltage value.

Duty Cycle: At 250A current, the duty cycle is 60% for both 110V and 220V. That is, within 10 minutes, it can weld for 6 minutes and needs to cool for 4 minutes.

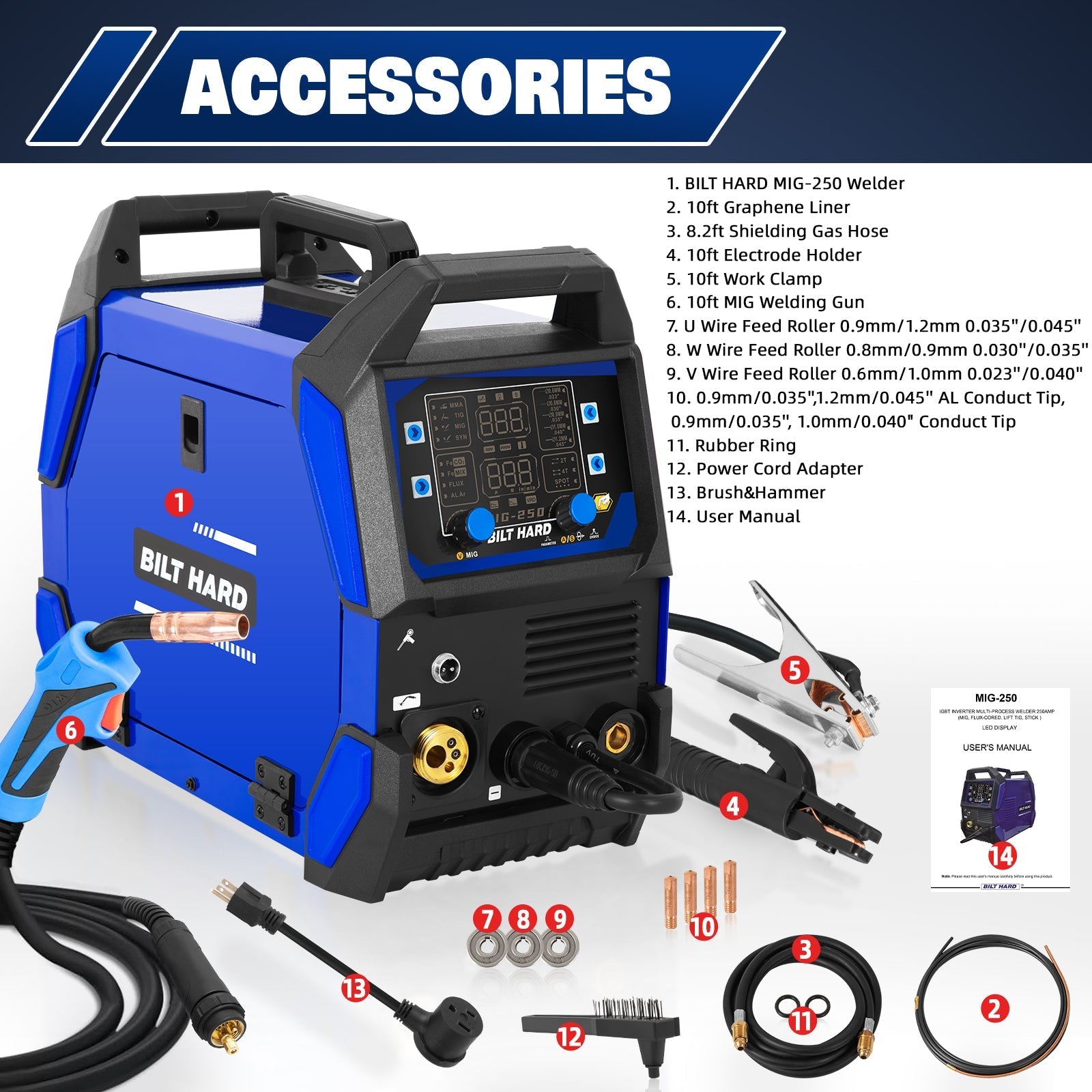

Product Main Body:

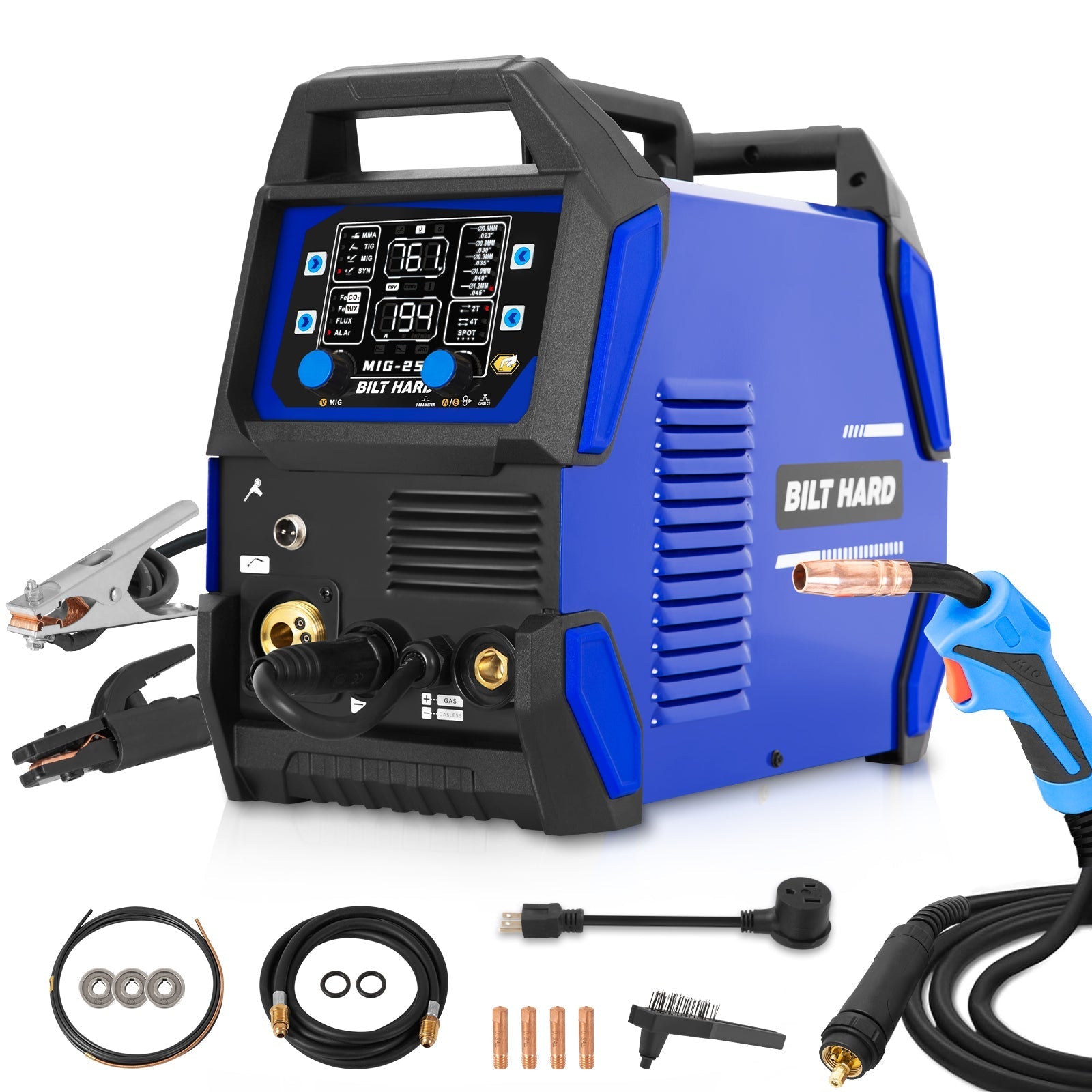

BILT HARD 250A MIG Welder

Welding-related accessories:

MIG welding gun (10 feet long), is crucial for MIG welding.

The electrode holder (10 feet long), holds the electrode for a stable circuit connection.

Work clamp (10 feet long), connects the welder and workpiece to form a complete circuit.

Wire feeding-related accessories:

U/W/V type wire feed rollers for different welding wire sizes (0.6mm - 1.2mm or 0.023'' - 0.045'').

Conductive nozzle and other accessories:

Various conductive nozzles (e.g., 0.9mm/0.035'', 1.2mm/0.045'' AL and 0.9mm/0.035'', 1.0mm/0.040") for good conductivity.

Rubber ring for sealing and equipment operation.

Other auxiliary accessories:

Power cord adapter for power supply.

Brush and hammer for cleaning and adjusting.

User manual for usage guidance.

Special accessories:

10-foot graphene liner for specific welding protection.

8.2 feet shielding gas hose for gas delivery in certain welding modes.
